Vacuum Lifting

Vacuum Tube Lifters Jumbo

Move goods weighing up to 300 kg quickly and easily

Cardboard boxes, bags, barrels, wooden boards and a variety of other applications – the vacuum tube lifter Jumbo tackles big jobs in the shortest amount of time. The intuitive operation allows you to move loads quickly, precisely and always ergonomically. It is the ideal aid for machine loading, for shipping and picking areas and for many other lifting applications.

Application

Fast and frequent lifting and moving of workpieces of up to 300 kg

Handling workpieces such as cardboard boxes, bags, barrels, buckets and jugs in internal logistics processes

Loading and unloading of CNC machining centers

Vacuum Tube Lifters JumboFlex

The vacuum tube lifter JumboFlex allows you to move lighter goods up to 50 kg ergonomically and with high cycle rates. The control handle fits comfortably in the hand and allows the operator to work for a long period of time without fatigue. With simple one-finger control, lifting, lowering and releasing the load is extremely intuitive. The JumboFlex’ wide range of features allows it to tackle virtually any task. It comes standard with a quick-change system for replacing the vacuum grippers. Workpieces which are gripped from the vertical side automatically swing back into the horizontal position where they can be continuously rotated.

Application

Ergonomic movement of compact goods up to 50 kg at high cycle frequencies
Ensuring efficient material flow in e.g. intralogistic areas by effortless movement of diverse goods
Loading and unloading of plants and machines with high throughput
Ergonomic assistance for commissioning packages and for loading sorting and distribution machines
Workpieces that are picked up from the side automatically swing back into the horizontal position where they can be continuously rotated

Modular system Modular elements Technical data

Modular system

(1) Lifting unit with protective tube

(2) Suspension height can be adjusted without a load attached

(3) Filter, changeable without tools

(4) One-finger control for lifting, lowering and releasing the load

(5) Ergonomic control handle with non-slip elements

(6) Continuous rotation, can be locked in 90° increments

(7) Quick-change adapter for fast, tool-free gripper change

(8) Vacuum grippers, adapted to the workpiece

(9) 90° slewing mechanism (manual) for picking up loads from the side

(10) Radio remote control SRC for vacuum generator (optional)

The operating unit of the JumboFlex 50 for maximum loads of up to 50 kg is different than the operating unit of the JumboFlex for maximum loads of up to 20 and 35 kg.

Modular elements

Quick-change adapter

Versatility is key: Schmalz offers the correct vacuum grippers for virtually any application. With the quick-change adapter the gripper can be changed quickly and easily.

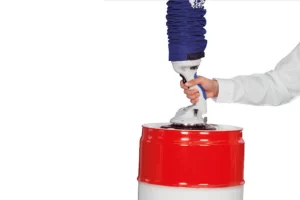

Round vacuum gripper

For compact goods such as cardboard boxes, barrels, buckets, jugs and cabinets.

Round vacuum gripper with skirt

For optimal sealing on plastic bags and shrink-wrapped packages.

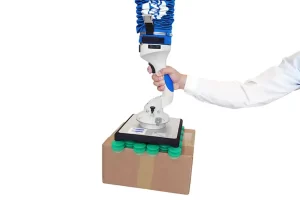

Double vacuum gripper

For stapled, glued, strapped or open cardboard boxes as well as small wooden boards.

Quadruple vacuum gripper

For large cardboard boxes, wooden boards and other flat workpieces.

Multiple vacuum gripper

Universal gripping of various cardboard box sizes and qualities with a Minimum occupancy rate of 75%.

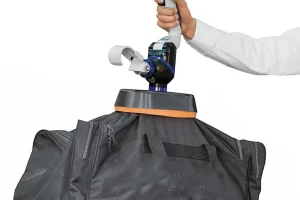

2-in-1 gripper

Combination of a vacuum gripper and a suspension hook for baggage pieces such as suitcases or bags.

Suspension hook

For mechanical suspension of buckets, jugs and other workpieces with a point from which to hang.

Box gripper

For transport and storage boxes from all commercial manufacturers (VDA 4500 standard).

Sack gripper

For handling suction tight or porous paper, plastics and fabric bags.

Technical data

The vacuum tube lifter JumboFlex can be configured specifically based on the requirements of each individual application due to its modular design. The technical data varies depending on the configuration and on the vacuum gripper chosen.

The following technical data are standard values.

Type	Max. lift capacity [kg]	Workpiece format* min.	Workpiece format* max.	Max. lifting speed [m/min]	Max. lifting stroke Z	Height H** with vacuum pump [mm]	Height H** with vacuum ejector	Lift tube Ø D
		[mm]	[mm]		[mm]		[mm]	[mm]
Flex 20	20	200x200	2,000x1,000	60	1,500	2,500	2,680	80
	20	200x200	2,000x1,000	60	1,800	2,800	2,980	80
Flex 35	35	200x200	2,000x1,000	60	1,500	2,500	2,680	100
	35	200x200	2,000x1,000	60	1,800	2,800	2,980	100
Flex 50	50	200x200	2,000x1,000	60	1,500	2,500	-	120
	50	200x200	2,000x1,000	60	1,800	2,800	-	120
*Depends on the vacuum gripper chosen
**Vacuum grippers not included (total height = H + height of the vacuum gripper

Vacuum Tube Lifters JumboErgo

For workpieces of many different shapes and sizes weighing up to 300 kg

The twist grip on the JumboErgo is designed to operate like a motorcycle throttle. Large and heavy loads such as wooden boards, cardboard boxes and solar panels can be moved gently and precisely. The length of the operator handle can be varied, which allows the user to always maintain a safe distance from the load.

Application

Fast and frequent lifting and moving of flat workpieces up to 300 kg
Responsive and precise handling of differently sized workpieces such as cardboard boxes, wooden boards or solar panels in internal logistics processes
Loading and unloading of CNC machining centres

Modular system Modular elements Technical data

Modular system

(1) Radio remote control SRC for vacuum generator (optional)

(2) Frequency control with vacuum blower SBV

(3) Twist grip for lifting, lowering and releasing the load

(4) Filter - changable without tools

(5) Suspension height can be adjusted without the load attached

(6) Quick-change adapter for vacuum grippers (optional)

Modular elements

Quick-change adapter

Versatility is key: Schmalz offers the right suction cups for virtually any application. With quick-change adapter the gripper can be changed quickly and easily.

Single vacuum gripper

For compact goods such as cardboard boxes, barrels, buckets, jugs and cabinets.

Single vacuum gripper, long

For pallets, narrow cardboard boxes, beams, square tubes and other elongated workpieces.

Round vacuum gripper

For barrels, buckets or stone slabs with rough surfaces.

Sack gripper

For paper and plastic bags, raw rubber bails and shrink-wrapped packages.

Double vacuum gripper

For cardboard boxes, crates or sheets. The vacuum grippers can be continuously adjusted along the beam.

Double vacuum gripper FMP

For pallets, sections or cut pieces where the vacuum gripper is not fully covered by the workpiece. The grippers can be continuously adjusted along the beam.

Quadruple vacuum gripper

For large cardboard boxes, sheets and non-rigid pieces. The vacuum grippers can be continuously adjusted lengthwise and crossways.

Multiple vacuum gripper

For uneven workpieces such as foil trays or unstable cardboard boxes. The individual vacuum grippers optimally compensate for any unevenness.

Needle gripper

For air-permeable components such as soft wood fiber, rock wool, foam or insulation boards.

Mechanical grippers

Schmalz offers mechanical gripper solutions for workpieces that cannot be vacuum-gripped, such as bags or open transport boxes.

Modular system for configuring custom grippers

In addition to a large number of pre-configured grippers, the modular gripper system adds additional configurations to the Jumbo product range. You can easily configure multiple vacuum grippers that are custom tailored to the respective application.

Technical data

The vacuum tube lifters JumboErgo and JumboSprint can be configured specifically based on the requirements of each individual application due to their modular design. The technical data varies depending on the configuration and on the vacuum gripper chosen.

The following technical data are standard values.

Type	Workpiece format*	Workpiece format*	Operator handle	Max. lifting	Max. lifting stroke	Height
	Min [mm]	Max [mm]	length L [mm]	speed [m/min]	Z [mm]	H** [mm]
JumboErgo	300x200	4,000x2,000	350-1,000	60	1,700	2,850
	300x200	4,000x2,000	350-1,000	60	2,100	3,400
JumboSprint	300x200	3,000x1,000	155-500	60	1,700	2,850
	300x200	3,000x1,000	155-500	60	2,100	3,400
A lift capacity of 140 kg and higher applies: lifting stroke Z +160 mm, height H +250 mm
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (total height = H + height of the vacuum gripper)

Jumbo type	Max. lift capacity [kg]		Ø Lift tube
	Horizontal	90° swivel	D [mm]
Ergo/Sprint 35	35	-	120
Ergo/Sprint 45	45	30	140
Ergo/Sprint 65	65	50	160
Ergo/Sprint 85	85	70	178
Ergo/Sprint 110	110	90	203
Ergo/Sprint 140	140	120	230
Ergo/Sprint 200	200	-	250
Ergo/Sprint 300	300	-	305

Vacuum Tube Lifters JumboSprint

For compact workpieces weighing up to 300 kg

The JumboSprint is equipped with a bow-shaped operator handle which extends all the way around the unit. This allows the user to optimally position it on compact goods such as bags or rubber bales. The load is raised by pulling up on the handle lever and lowered by pushing down.

Application

Fast and frequent lifting and moving of compact workpieces up to 300 kg
Handling of workpieces such as bags, barrels, buckets, jugs and rubber bales in internal logistics processes
Ensures efficient material flows during loading or unloading of mixing machines
Available in a stainless steel version for special ambient conditions, e.g. in food related areas

Modular system Modular elements Technical data

Modular system

(1) Radio remote control SRC for vacuum generator (optional)

(2) Filter - changable without tools

(3) Bow-shaped Operator handle for Lifting, lowering and releasing the load

(4) Suspension height can be adjusted without the load attached

(5) Quick-change adapter for vacuum grippers (optional)

(6) Suspension height can be adjusted with a load attached

Modular elements

Quick-change adapter

Versatility is key: Schmalz offers the right suction cups for virtually any application. With quick-change adapter the gripper can be changed quickly and easily.

Single vacuum gripper

For compact goods such as cardboard boxes, barrels, buckets, jugs and cabinets.

Single vacuum gripper, long

For pallets, narrow cardboard boxes, beams, square tubes and other elongated workpieces.

Round vacuum gripper

For barrels, buckets or stone slabs with rough surfaces.

Sack gripper

For paper and plastic bags, raw rubber bails and shrink-wrapped packages.

Double vacuum gripper

For cardboard boxes, crates or sheets. The vacuum grippers can be continuously adjusted along the beam.

Double vacuum gripper FMP

For pallets, sections or cut pieces where the vacuum gripper is not fully covered by the workpiece. The grippers can be continuously adjusted along the beam.

Quadruple vacuum gripper

For large cardboard boxes, sheets and non-rigid pieces. The vacuum grippers can be continuously adjusted lengthwise and crossways.

Multiple vacuum gripper

For uneven workpieces such as foil trays or unstable cardboard boxes. The individual vacuum grippers optimally compensate for any unevenness.

Sack gripper

For handling suction tight or porous paper, plastics and fabric bags.

Technical data

The following technical data are standard values.

Type	Workpiece format*	Workpiece format*	Operator handle	Max. lifting	Max. lifting stroke	Height
	Min [mm]	Max [mm]	length L [mm]	speed [m/min]	Z [mm]	H** [mm]
JumboErgo	300x200	4,000x2,000	350-1,000	60	1,700	2,850
	300x200	4,000x2,000	350-1,000	60	2,100	3,400
JumboSprint	300x200	3,000x1,000	155-500	60	1,700	2,850
	300x200	3,000x1,000	155-500	60	2,100	3,400
A lift capacity of 140 kg and higher applies: lifting stroke Z +160 mm, height H +250 mm
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (total height = H + height of the vacuum gripper)

Jumbo type	Max. lift capacity [kg]		Ø Lift tube
	Horizontal	90° swivel	D [mm]
Ergo/Sprint 35	35	-	120
Ergo/Sprint 45	45	30	140
Ergo/Sprint 65	65	50	160
Ergo/Sprint 85	85	70	178
Ergo/Sprint 110	110	90	203
Ergo/Sprint 140	140	120	230
Ergo/Sprint 200	200	-	250
Ergo/Sprint 300	300	-	305

Vacuum Tube Lifters JumboSprint EX

Safe Handling in an Explosion Protection Zone

Application

Fast and frequent lifting and moving of compact workpieces up to 250 kg in ATEX zone 2/22 and up to 85 kg lift capacity in ATEX zone 1/21
Handling of workpieces such as bags, barrels, buckets, jugs and rubber bales in explosion protection zones
Ensures efficient material flows during loading or unloading of mixing machines

Modular system Technical data

Modular system

(1) Vacuum generator - blower or ejector for special Ex version

(2) Jib crane with steel crane rail

(3) Vacuum tube lifter JumboSprint EX

Explosion zone	Vacuum generator	Max. lifting stroke	Max. lift capacity
		[mm]	45 kg	65 kg	85 kg	110 kg	140 kg	200 kg	250 kg
1/21	Ejector	1,700 / 2,100	X	X	X
2/22	Ejector	1,700 / 2,100	X	X	X

	Blower	1,700 / 2,100	X	X	X	X	X	X	X

Technical data

The following technical data are standard values.

Workpiece format*	Workpiece format*	Max. lifting	Max. lifting stroke	Height	Operator handle
Min [mm]	Max [mm]	speed [m/min]	Z [mm]	H** [mm]	length L [mm]
300x200	3,000x1,000	60	1,700	2,850	250-500
300x200	3,000x1,000	60	2,100	3,400	250-500
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (total height = H + height of the vacuum gripper)

Vacuum Tube Lifter JumboFlex Picker

The mobile picking solution for packages up to 40 kg

The unique ergonomics and safety of the Schmalz vacuum tube lifters are now also available for mobile use. The JumboFlex Picker can be transported with any standard industrial truck and is thus the ideal picking solution for packages weighing up to 40 kg - regardless of the location.

Application

Picking of mixed pallets from unmixed pallets for onward transport
De-stacking of pallets for distribution to different storage locations or further processing locations
Suitable as an internal goods distribution solution
Optimal for use with block or ground storage

Download Brochure

Modular system Features

Modular system

Vacuum tube lifter JumboFlex with 35 kg or 50 kg load capacity and approx. 1,300 mm stroke.

Height-adjustable column to increase the maximum gripping height up to 1,800 mm.

Smooth-running knuckle boom crane with 360° radius of action and approx. 1,600 mm length

Fixed element for extending the articulated arm by approx. 1,500 mm in length

Visibility-optimized basic module with control technology and vacuum generation

Powerful 24V battery with easy replacement option

Integrated touch display for system control

Colored LED band for status display and additional acoustic warning in case of danger

Forks for one or two pallets in different versions (EPAL/GMA)

Features

The clearly arranged touch display with soft keys enables simple and intuitive operation.

The support feet extend automatically after the boom is unlocked, minimizing cycle times.

The tube lifter is started at the push of a button. It can be combined with many quick-change grippers.

A status LED provides clearly visible information on the current operating status.

A magnetic switch fixes the boom in a safe parking position during travel.

The large-capacity battery can be charged in the machine and is also easy to change for multi-shift operation.

Vacuum Tube Lifters JumboFlex High-Stack

Optimal use of Space in Storage Areas and by Transport Devices

Application

Ergonomic movement of compact goods up to 50 kg at high cycle frequencies
Ideal for stacking cardboard boxes and bags in the optimum ergonomic range up to a stacking height of 255 cm
The JumboFlex High-Stack facilitates the optimal use of space in storage areas and transport equipment
Ensuring efficient material flow in e.g. intralogistic areas by effortless movement of diverse goods
Workpieces near floor height can be handled while maintaining upright posture

Modular system

Lifting unit (1) with sturdy lifting tube and integrated rotary union for continuous rotation of the tube lifter
Vacuum generation by means of an electric pump
Extended ergonomic one-handed control handle (2) with guide bars and a safety feature for releasing the workpiece
Continuously rotatable vacuum grippers (3) that can be replaced without tools for a wide range of workpieces

Vacuum Tube Lifters Jumbo Low-Stack

Ergonomic Pickup of Workpieces From low Positions

Application

Picking up and depositing workpieces up to 80 kg from low heights while maintaining upright posture

Ergonomic handling in low and medium-height working areas

Ergonomic loading and unloading of transport containers, allowing you to reach deeply into e.g. grid boxes, crates, and cardboard boxes

Fast and frequent lifting and moving of boxes, bags and other airtight workpieces

Modular system

Vacuum generation (1) by electric blower with lift capacity up to 80 kg
Flexible vacuum supply hose (2)
Shortened lifting unit (3) with sturdy lift tube and integrated rotary union for continuous rotation of the tube lifter
Operator handle (4) with lateral twist grip for lifting, lowering and releasing the load and integrated mechanism for adjusting the suspension height without load
Individually selected vacuum grippers (5) for a wide variety of workpieces

Optional: radio remote control for switching the tube lifter on/off, quick-change adapter for suction cups and much more

Our local and international partners…

Phone	+64 9 413 6405
Mobile	021 704 808
Address	Motorhub, 393 Ellerslie Panmure Highway, Auckland 1060, New Zealand
Email	Email Us
Hours	Monday to Friday 8:00am - 5.00 pm
