Simpro Handling Equipment
Ezi-MT
The economical hand-winch bin lifter.
The Ezi-MT is an economical manual bin lifter from Simpro, designed for low-volume users. Although it has a large 65kg lifting capacity, the Ezi-MT is lightweight and easy to move – making it an ideal solution for schools, cafes, small businesses, and local councils.
The Ezi-MT uses the same reliable tipping action found on other Simpro products, but with a difference: it is powered by the user! The unique hand winch-powered design allows full compliance with workplace health and safety laws, without expensive hydraulic machinery.
Like other Simpro products, the Ezi-MT always keeps the weight of the bin within the footprint of the machine throughout the tipping cycle. This ensures safety and stability, even when emptying very heavy bins.
Whole-of-life environmental impact was considered from the start of the Ezi-MT design process, to create a product that doesn't hurt the planet. The unique single-mast design weighs just 110kg, and can be shipped flat-packed to reduce carbon emissions from transport. The Ezi-MT has no powered components, generates no electronic waste, and is completely recyclable.
Yet the Ezi-MT is also very robust, and can be used outdoors for many years with little or no maintenance.
Features

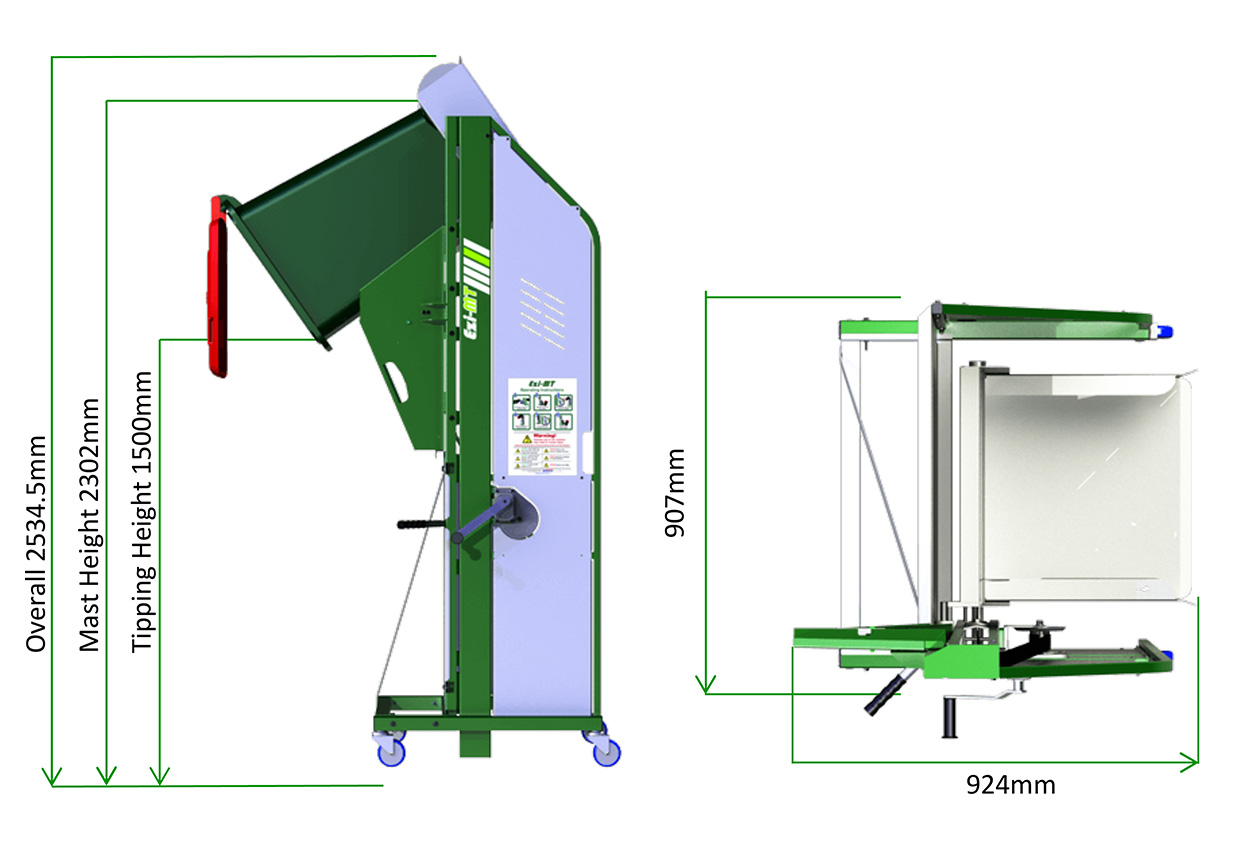

DImensions
Specifications
| Ezi-MT Specifications | |
|---|---|
| Model | EZI-MT1500 |
| Tipping height | 1500mm |
| Height | 2302mm cradle lowered / 2535mm cradle raised |
| Width | 907mm |
| Length | 924mm |
| Weight | ~110kg |
| Capacity (max bin weight) | 65kg |
| Cradle compatibility (EN840 cradle) | 60L, 80L, 120L, 140L, 240L EN840 wheelie bins (options: custom cradle) |
| Bin throw | ~180mm with 240L wheelie bin / ~105mm with 120L wheelie bin |
| Electrical specifications | Not applicable |
| User interface | Winch handle, grab handle, dual foot-brakes |
| Ingress protection | IP66 |
| Cradle travel speed | Operator dependent (typically ≤ 0.2m/s) |
| Tipping cycle duration | Operator dependent (typically ~30s) |
| Noise level at operator’s ear | ⪅ 40dB(A) |
| Materials | Powdercoated mild steel frame, zinc-plated 1.6mm sheetmetal guarding, zinc-plated mild steel cradle |
| Mounting | ⌀100mm Blue Resilex castors, two braked (options: pneumatic tyres) |
| Applicable Standards and Certifications | AS/NZS4024:2014, ISO 13849-1:2006, Conformité Européene (CE) |
Download the Brochure
