Container Ramps
Matpack Container Ramps
Our industrial strength forklift container ramps fit all types of containers in New Zealand including standard and refrigerated (reefer) containers.
They are built to last and include a 2 year warranty PLUS are fully certified!
Container Ramp 6 tonne (Certified)
This high grade container ramp is made from 5mm checker plate steel on the top and double re-enforced steel rib construction underneath. This double thick steel and unique rib design significantly reduces stress sagging from continued use. Quality that will last.
It also features a two safety chains that can be attached to the container reducing the risk of ramp slippage and possible accidents.
Key features:
- Certified weight capacity: 6 metric tonnes
- Made with 6 mm checker steel tread on the plate
- Reinforced with 5mm high grade steel full wall thickness box section underneath.
- Fork slot width: 150mm.
- Designed for use on flat concrete surface.
- Not suitable for refrigerated containers.
Ideal Usage: Standard Flat Deck Container (20ft or 40ft) - It is designed for use on flat concrete surfaces and includes a bent front lip to rest on the container opening edge.

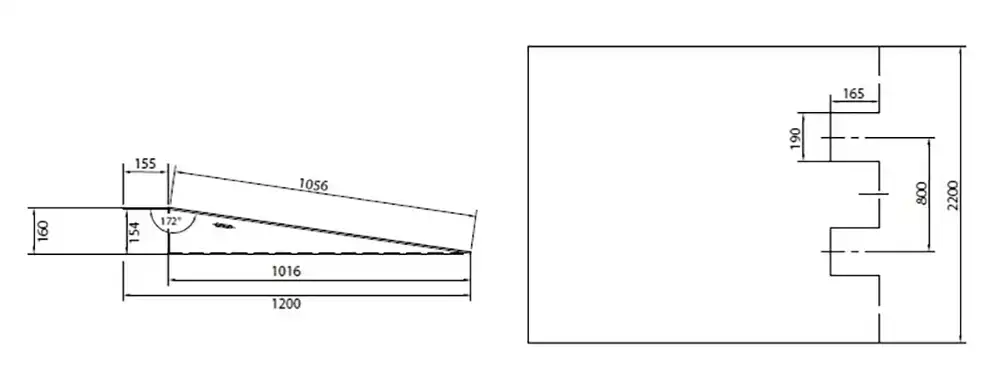

Size: W2200mm x L1230mm x H160mm. Unit Weight 178kg
SKU CRN6
2-in-1 Container Ramp 6.5 tonne (Certified)
Reefer & Standard
The 2-in-1 multi-functional container ramp is designed to work on all container types - both standard and refrigerated (reefer) containers. It also features an extended length that produces a shallow incline allowing the forklift to enter and exit more safely under load.
When the ramp is extended it's large base adds stability where ground may be uneven. The product also includes forklift slots for easy placement around your yard.
Key features:
- Certified weight capacity: 6.5 metric tonnes
- Fits standard and refrigerated containers.
- Suitable for container decks 75-200mm in height.
- Reinforced underneath with 6.3mm wall thickness box section.
Ideal Usage:
Standard Containers (20ft or 40ft) - This ramp is ideal for when you need the incline from the container to be as shallow as possible. This allows for easier entry and exit from the container with your forklift.
Refrigerated Containers (20ft or 40ft) - An ideal ramp for refrigerated containers due to the entry point being higher than standard containers.
Specifications:
Capacity: 6500kg certified
Width: 2200mm
Length: 2000mm
Fork Pocket Size: 165mm x 60mm
Fork Pocket Centre: 775mm
Net Weight: 295kg
SKU CRN65
Container Ramp 8 tonne / 3.0m Level Entry (Certified)
This high grade container ramp is made from 8mm checker plate steel on the top and double re-enforced steel rib construction underneath. This double thick steel and unique rib design significantly reduces stress sagging from continued use. Quality that will last.
It also features Two lifting points and two safety chains that can be attached to the container reducing the risk of ramp slippage and possible accidents.
The ramp has a CE certified capacity of 8 metric tonnes.
Key features:
- Certified weight capacity: 8 metric tonnes
- Made with 8 mm checker steel tread on the plate
- Reinforced with 8 mm high grade steel full wall thickness box section underneath.
- Fork slot width: 150mm.
- Designed for use on flat concrete surface.
- Not suitable for refrigerated containers.
Ideal Usage:
Standard Flat Deck Container (20ft or 40ft) - It is designed for use on flat concrete surfaces and includes a bent front lip to rest on the container opening edge.
Size: W2200mm x L2991mm x H160mm. Unit Weight 500 kg.
SKU CRL8
Container Ramp 8 tonne / 1.8m (Certified)
This high grade container ramp is made from 6mm checker plate steel on the top and double re-enforced steel rib construction underneath. This double thick steel and unique rib design significantly reduces stress sagging from continued use. Quality that will last.
It also features a two safety chains that can be attached to the container reducing the risk of ramp slippage and possible accidents.
The ramp has a CE Certified capacity of 8 metric tonnes.
Key features:
- Certified weight capacity: 8 metric tonnes
- Made with 6 mm checker steel tread on the plate
- Reinforced with 6mm high grade steel full wall thickness box section underneath.
- Fork slot width: 150mm.
- Designed for use on flat concrete surface.
- Not suitable for refrigerated containers.
Ideal Usage:
Standard Flat Deck Container (20ft or 40ft) - It is designed for use on flat concrete surfaces and includes a bent front lip to rest on the container opening edge.
Size: W2200mm x L1730mm x H160mm. Unit Weight 275 kg.
SKU CRN8
